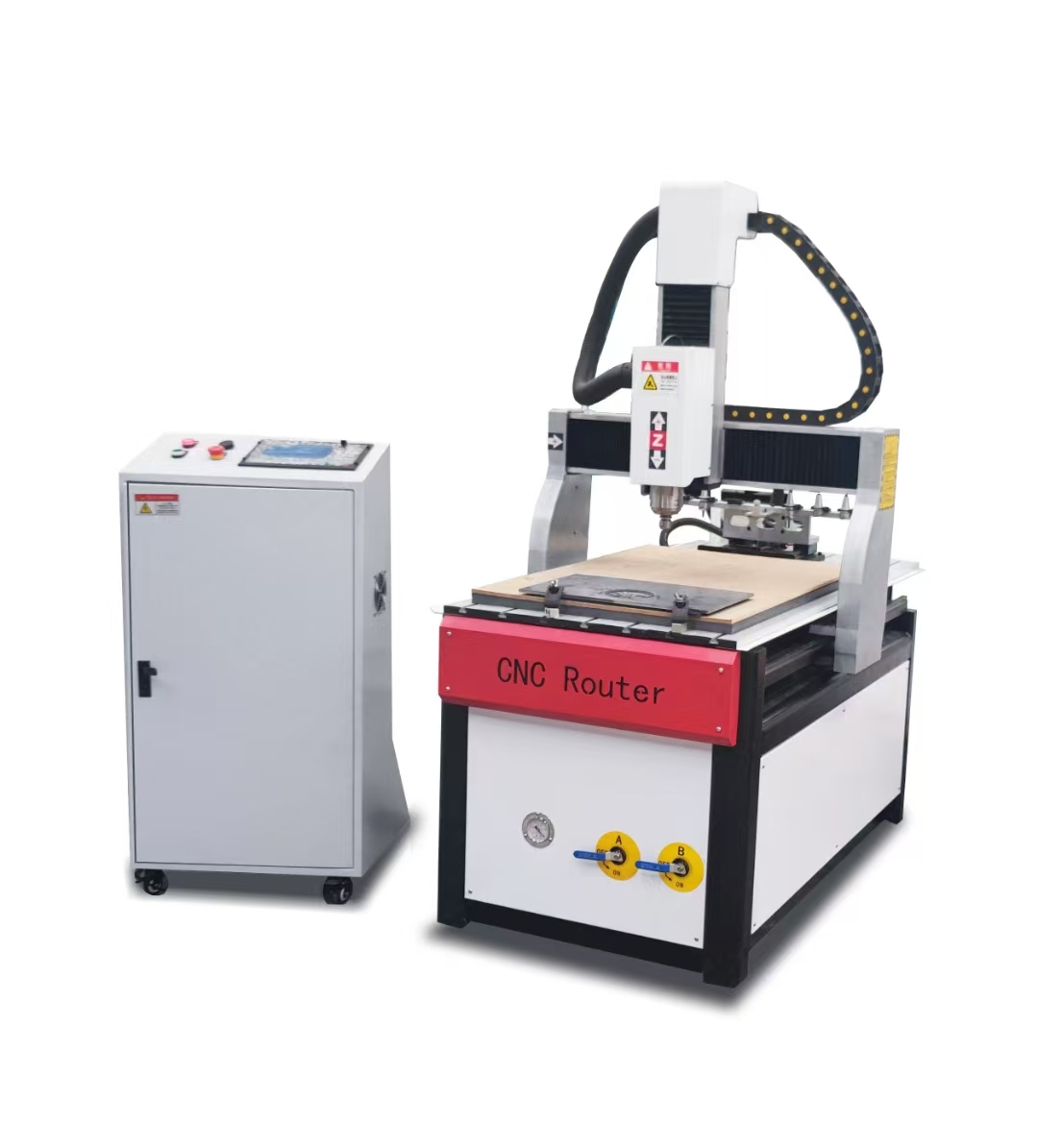

MIni 6090 ATC CNC Router Machine

inquiry

SPECIFICATION
WORKING AREA	600mm×900mmx200mm
REPEATABILITY	0.01/300mm
SPINDLE POWER	3KW(WATER COOLING)
GUIDE WAY	LINEAR (HIWIN)
ROUTER BITS DIAMETER	Φ3.175 Φ6
POWER	AC220V/50HZ
MOVING SPEED	25m/min
WORKING SPEED	22m/min
TRANSMISSION	Ball Screw
Spindle rotating speed	6000-24000rpm
Command	G code.u00.mmg*plt
CONTROLLER	MDCCNC
MOTOR	SERVO MOTOR (750W)
ACCESSORY	Vacuum System
	Dust collector

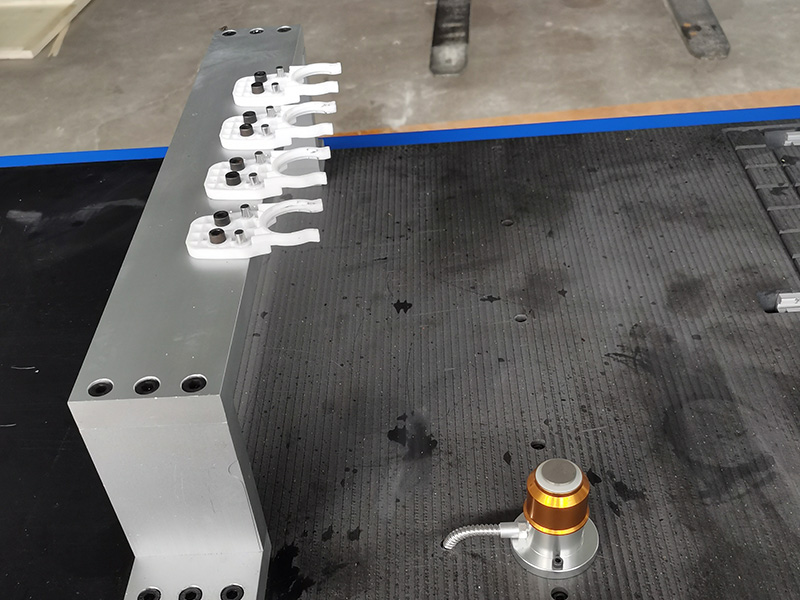

SUITABLE INDUSTRY	6 tools chang automatic for woodworking, metal process.


◆Adopts thick steel pipe welded lathe bed, the special heat-treatment ensures minimum distortion, excellent rigidity and vigorous strength.

◆High precision TBI Gridding Grade ball screw transmission and servo system ensures high accuracy, fast speed and good stability.

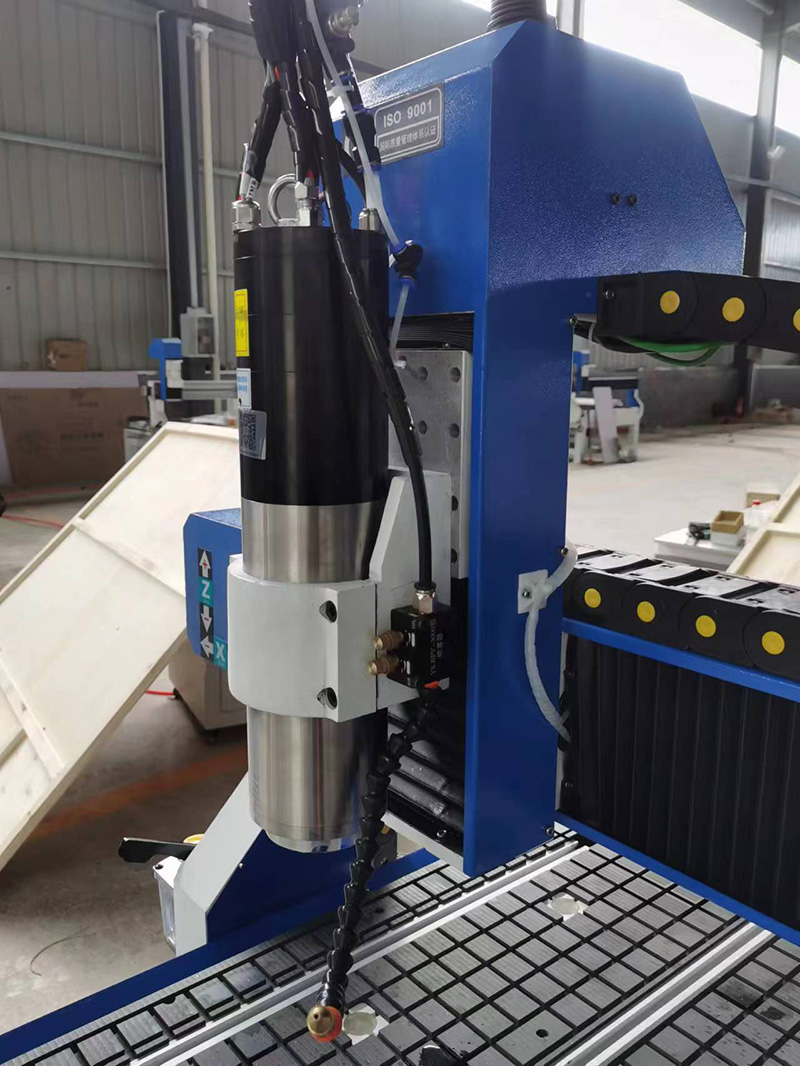

◆3Kw Chinese water cooling spindle with auto tools changing.

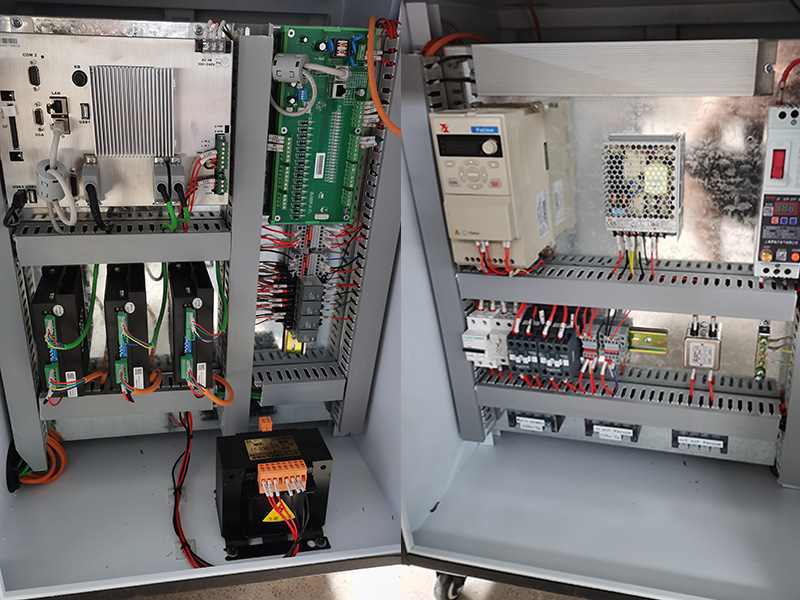

◆PC controller system with hand wheel, convenient for positioning operation.

◆Sprayer lubrication system and automatic lubrication system optional.
